DESCRIPTION

Overview

Basic Info.

Model NO.	ZP100-9C
Application	300g 350g Tablet Production
VFD Brand	Innovation Brand
Weight	7000kg
Depth of Fill	Max 90mm
Key Part	Big Gear Box Under Machine Bottom Frame
Customers	More Than 20 Sets in USA
Turtable Material	Cast Iron
Dies Quantity	9sets
Speed	Controlled by VFD
Pressure	1000kn
Max Product	80mm Tablet
Mold	Made of Titanium Alloy
Motor	45 Kw
Certificate	CE SGS
Max Production Capacity	1-5400 PCS/H(Adjustable)
Transport Package	Standard Exporting Packing
Specification	1000Kn press machine
Trademark	Chenguang rotary tablet press
Origin	Changzhou of China
HS Code	8474809090
Production Capacity	1-100 Sets Per Year

Product Description

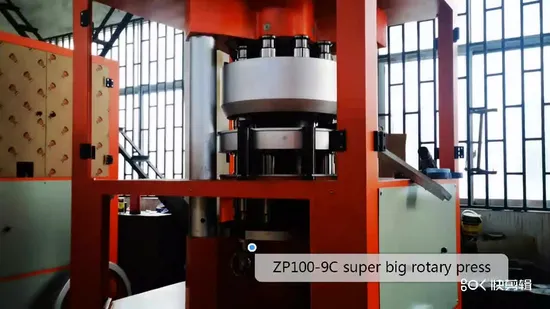

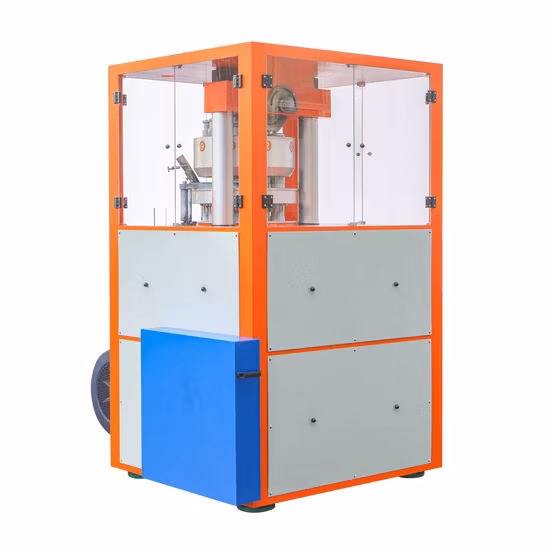

ZP100-9C super large rotary press machine
used to press 300g -350g big tablets, such as 300g/350g Calcium hypochlorite tablet.Introduction:ZP100-9C can press any granular material into large tablets of round or non-round shape. It was specially developed for large tablet production in 300g -350g.ZP100-9C super large rotary tablet press machine , own a bigger depth of fill 90cm, and own a bigger main pressure 1000kn+Pre-pressfure 200kn. It is an idea machine for water treatment facory on high capacity 300g-350g tablet production .
Product Parameters

Following is the specification and ZP100-9C machine for your reference:

Model	ZP100-9C
Dies	9 sets
Max main pressure	1000 Kn
Max pre-pressure	200 Kn
Max Dia of Tablet	80 mm
Depth of Fill	90mm
max Thickness of Tablet	54 mm
Turret Speed	1--10r/min
Max Production Capacity	1-5400 pcs/h(adjustable)
Motor	45 kw 960 r/min 380 v / 50 hz/3p
Overall Size(with hopper)	2200×1600×2950mm
Net Weight	7000kg

Detailed Photos

Product DescriptionCompany Profile
We--Chenguang Pharmaceutical Machinery, established in 1986 year, are a real manufacturer from China of various kinds of tablet press machines, such as rotary tablet press machines, large rotary TCCA tablet press machines, lab/small tablet press machines, hydraulic tablet press machines, single punch tablet press machines and so on, which have widely been used in food, electronic, chemical, pharmacy and so on. Our tablet press machines, not only popular in China, also have been exported to Brazil, Japan, USA, Canada, Australia, Thailand, Malaysia, UK, Singapore and so on. Especially our large rotary TCCA tablet press machines, by virtue of high production capacity in 100g 200g 250g Chlorine tablets, 5 sets of them have been used by Hebei Jiheng Chemical, which is a famous group company for pool treatment chemicals in China. Relying on excellent effects in this water treatment field, they also attracted companies from abroad, for example Brazil Genco Chemical and Japan Nan kai Chemical. We have reached the long-term cooperation agreement with such clients.Our Advantages

Characters:

* 9 pcs of Tablets output in each circle, max 5400pcs/h.* has pre-press wheel 200Kn, and 1000Kn main pressure, which guarantee the quality of finished tablets.* Moulds are made of Titanium Alloy material.*Own a big powerful gear box under machine bottom frame.* Other parts connecting with material are made of Titanium material.* Transparent window is made of plexiglass, prevent powder from cross-contamination* All gearing parts are fixed in machine inner, avoid it of corrosion.* With a frequency protection device, if pressure is too large, the tablet press machine can be automatically shut down to protect the body from damage.Packaging & Shipping
